What we offer:
Maximum Part Size
Milled parts up to 80” x 48” x 24” (2,032 x 1,219 x 610 mm). Lathe parts up to 62” (1,575 mm) length and 32” (813 mm) diameter.
Minimum Feature Size
0.020” (0.50 mm). This may vary depending on part geometry and chosen material.
Mills

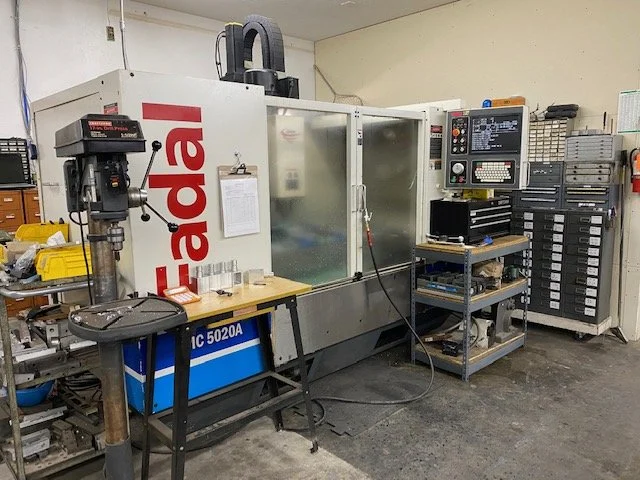

Fadal VMC 5020A
GENERAL SPECIFICATIONS
Table Size 58" x 20"
X-Axis Travel 50"
Y-Axis Travel 20"
Z-Axis Travel 20"
Cutting Feed Rate 0.01 - 400 ipm (600 ipm @ 150%)
Rapid Feed Rate (X&Y) 900, (Z) 700 ipm
Max Table Weight 3000 Lbs
Spindle Speeds 7,500 RPM Variable
Spindle Torque 220 ft-lbs
Spindle Taper Cat 40
Spindle Power 22.5 HP
Spindle Nose To Table 4" - 24"
Spindle Center to Column 20"
Tool Changer Positions 24 Side Mount ATC
Max Tool Diameter 3"
Max Tool Length 15"

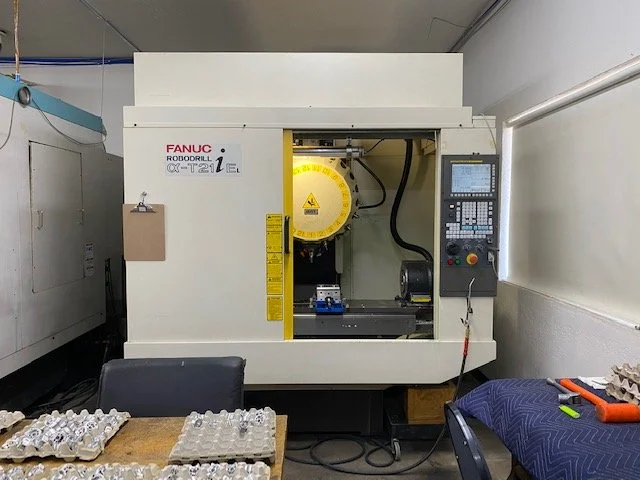

Fanuc Robodrill T21iEL
GENERAL SPECIFICATIONS
XYZ travel:28”x16”x13’
Max. distance spindle nose to table: 580mm
Table size: 850x410mm
Max. spindle speed: 10000rpm
Max. workpiece weight: 250kg
Spindle taper: BT30
Toolchanger: 21atc

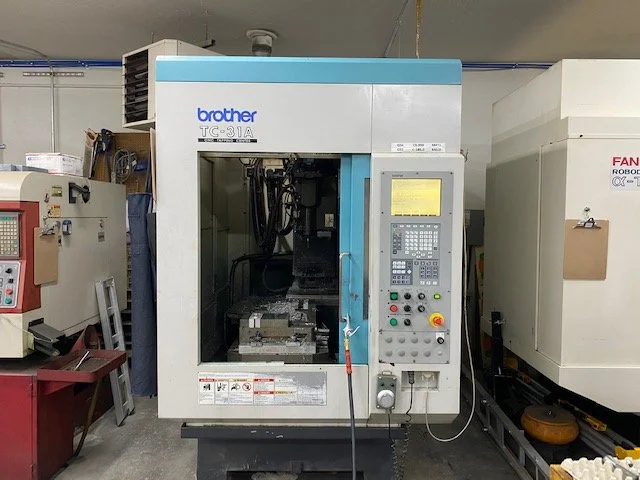

Brother TC-31A
GENERAL SPECIFICATIONS
X axis travel: 13.8" Y axis travel: 9.8" Z axis travel: 13.8" Work table size: 21.65"x13.77" Max. Load Weight: 80kg (176 lbs.) Spindle speed: 16 - 16000 rpm. Spindle Drive: 7.5 HP/5 HP. Tool storage capacity: 26 pcs.
Lathes

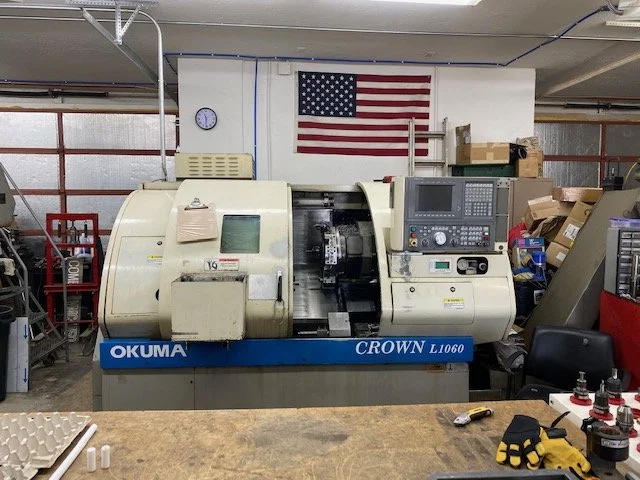

Okuma Crown L1060
GENERAL SPECIFICATIONS
2” Through Bore
Z-Axis Travel 20.47"
X-Axis Travel 7.28" Bar Capacity 2.0"
Turn Diameter 10.63"
Distance Between Centers 20.00"
Swing Over Bed 21.62"
Swing Over Cross Slide 15.75"
Maximum Turning Diameter 10.63"
Spindle Speed 50-4,200 RPM
Spindle Motor 15 HP

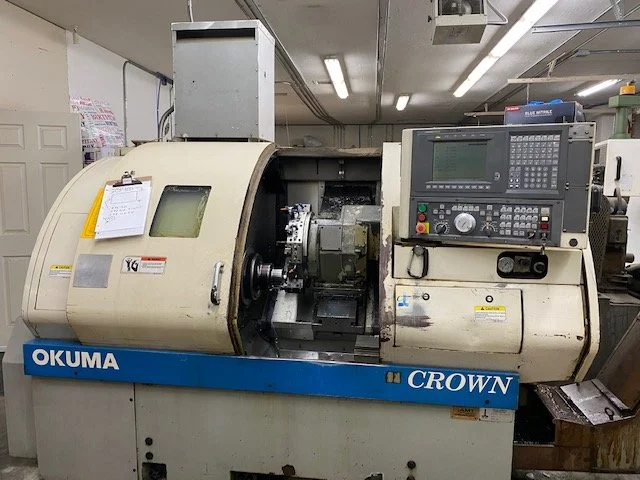

Okuma Crown
GENERAL SPECIFICATIONS
3” Through Bore
Z-Axis Travel 20.47"
X-Axis Travel 7.28" Bar Capacity 2.0"
Turn Diameter 10.63"
Distance Between Centers 20.00"
Swing Over Bed 21.62"
Swing Over Cross Slide 15.75"
Maximum Turning Diameter 10.63"
Spindle Speed 50-4,200 RPM
Spindle Motor 15 HP

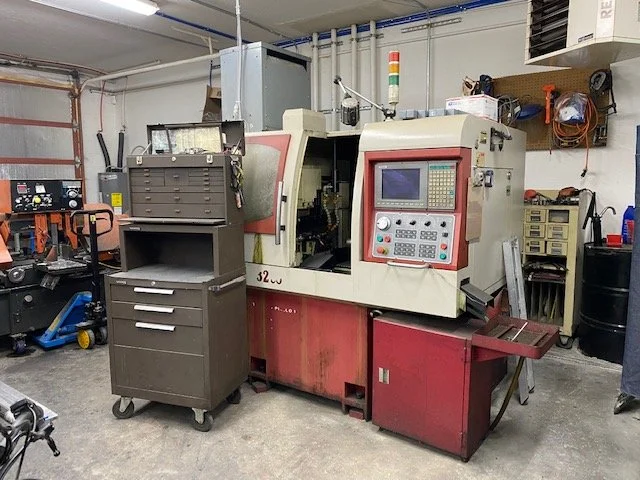

Ganesh CNC E-32 cs 7 Axis
GENERAL SPECIFICATIONS
X-Axis Travel: 7.28"
Y-Axis Travel: 19.29"
Z-Axis Travel: 6.5" Main Spindle
Spindle Motor: 10 HP
Max. RPM: 6000 RPM
Max. Barstock Diameter: 1.25"
Collet Nose: Traub A-32 Max. Barstock Diameter: 1.25"
Rapid Travel Speed: 1180 IPM
Minimum Input Unit: 50 Millionths (.00005")
OD Turning Tool Positions: 6 OD
ID Turning Tool Positions: 5 ID
OD Turning Tool Size: 1/2"
ID Turning Tool Bore Size: 1"
Spindle Center Height: 38"
CNC Programming
We offer CNC Programming and engineering troubleshooting to make sure your parts are functional.

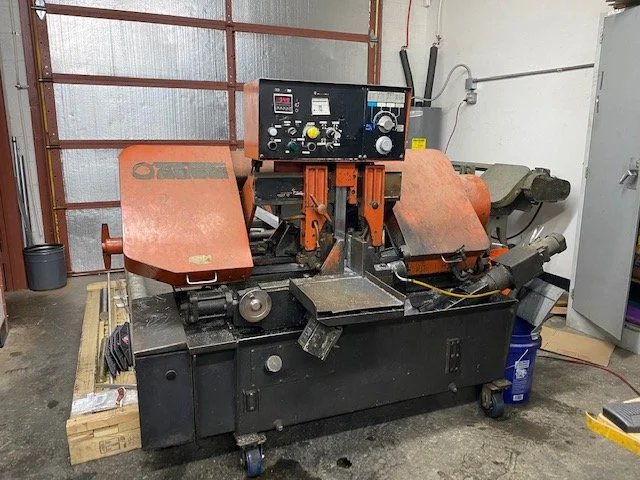

Automatic Saw
Amada HA250W
GENERAL SPECIFICATIONS
Cutting Capacity: Rectangle (W x H)11.8″ x 10″ Work Load Capacity: 3,307 lbs. Saw Blade Size: (L x T x W)11'6″ x 0.042″ x 1-1/4″ Blade Speed: 89-295 ft./min, 60 Hz Stepless
